Technical Specifications
Height 35 mm
35 mm
Width 40 mm
40 mm
Depth 10 mm
10 mm
Weight 7.3 g
7.3 g
Height
35 mm
Width
40 mm
Depth
10 mm
Weight
7.3 g
Performance Evaluation
Performance Evaluation
Eye Tracking Technology
Real-time neural network
Eye Tracking Technology
Real-time neural network
Binocular Eye Tracking
Yes
Binocular Eye Tracking
Yes
Calibration
Calibration-free
Calibration
Calibration-free
Slippage Compensation
Slippage invariant. Deep learning powered.
Slippage Compensation
Slippage invariant. Deep learning powered.
Accuracy
1.8 deg uncalibrated
1.3 deg with offset correction
Accuracy
1.8 deg uncalibrated
1.3 deg with offset correction
Scene Camera
1600 x 1200 @30 Hz
H: 132°, V: 81°
Scene Camera
1600 x 1200 @30 Hz
H: 132°, V: 81°
Eye Cameras
2 x IR eye cameras
192 x 192 @200 Hz
Eye Cameras
2 x IR eye cameras
192 x 192 @200 Hz
IMU
Accelerator, Magnetometer, Gyroscope
IMU
Accelerator, Magnetometer, Gyroscope
Microphone
Yes (stereo mic)
Microphone
Yes (stereo mic)
Battery Recording Time
Up to 4 hours
25+ hours of recording storage
Battery Recording Time
Up to 4 hours
25+ hours of recording storage
Cable
USB-C
Cable
USB-C
Computing Device
Mobile computing device: OnePlus 8, 8T or 10 Pro
Computing Device
Mobile computing device: OnePlus 8, 8T or 10 Pro
Real-time Data
2D gaze points in scene camera coordinates at 200 Hz.
Full head pose, accelerometer and gyro data at 110Hz.
IR eye video showing fused eye regions at 200 Hz.
RGB scene video at 30 Hz.
Real-time Data
2D gaze points in scene camera coordinates at 200 Hz.
Full head pose, accelerometer and gyro data at 110Hz.
IR eye video showing fused eye regions at 200 Hz.
RGB scene video at 30 Hz.
Post-hoc Data
Fixation & blink data
Pupillometry data and eye state (Available in Pupil Cloud)
Post-hoc Data
Fixation & blink data
Pupillometry data and eye state (Available in Pupil Cloud)
Software
Real-time: Neon Companion App
Post-hoc: Pupil Cloud
Software
Real-time: Neon Companion App
Post-hoc: Pupil Cloud
Sample Recordings
Sample Recordings
Frame
Multiple frames available. See Frame specs below.
Frame
Multiple frames available. See Frame specs below.
Frame Specifications
Frame
Frame Properties
Lens Properties
Notes

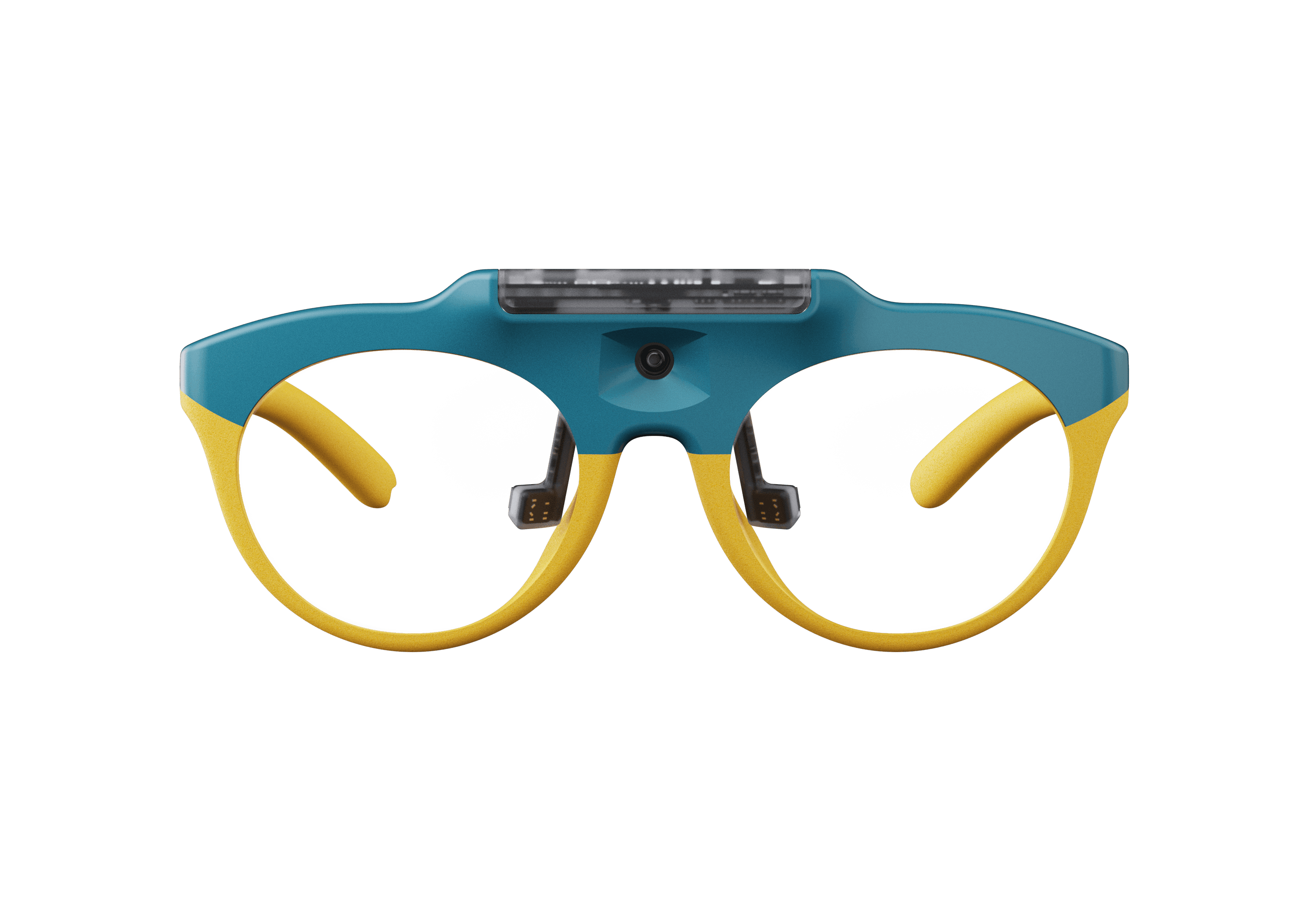

Just act natural
Dimensions
H52 x W143 x D164 x B21 mm
Weight
36 g (including Neon module)
Material
PA12 Nylon
Dimensions
LH44 x LW51 mm
Material
Plano CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
Just act natural
Frame Properties
Dimensions
H52 x W143 x D164 x B21 mm
Weight
36 g (including Neon module)
Material
PA12 Nylon
Dimensions
LH44 x LW51 mm
Lens Properties
Material
Plano CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating

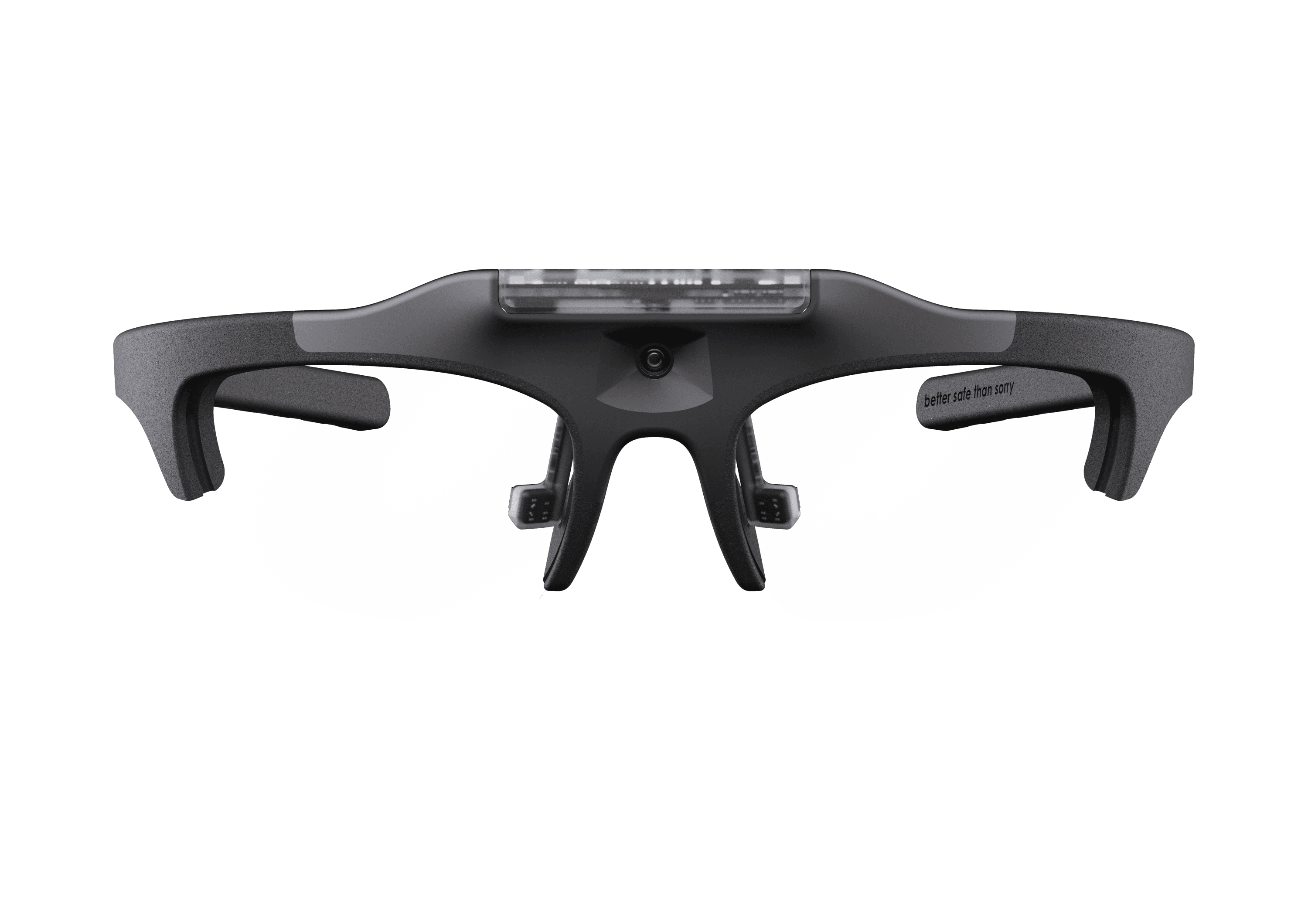

Better safe than sorry
Dimensions
H46 x W150 x D169 x B21 mm
Weight
33 g (including Neon module)
Material
PA12 Nylon
Dimensions
LH34 x LW52 mm
Material
Plano CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
Safety Rating in progress
Better safe than sorry
Notes
Safety Rating in progress
Frame Properties
Dimensions
H46 x W150 x D169 x B21 mm
Weight
33 g (including Neon module)
Material
PA12 Nylon
Dimensions
LH34 x LW52 mm
Lens Properties
Material
Plano CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
All fun and games
Dimensions
H49 x W127 x D145 x B19 mm
Weight
23 g (including Neon module)
Material
PA12 Nylon
N/A
For Kids (Aged 2-8)
All fun and games
Notes
For Kids (Aged 2-8)
Frame Properties
Dimensions
H49 x W127 x D145 x B19 mm
Weight
23 g (including Neon module)
Material
PA12 Nylon

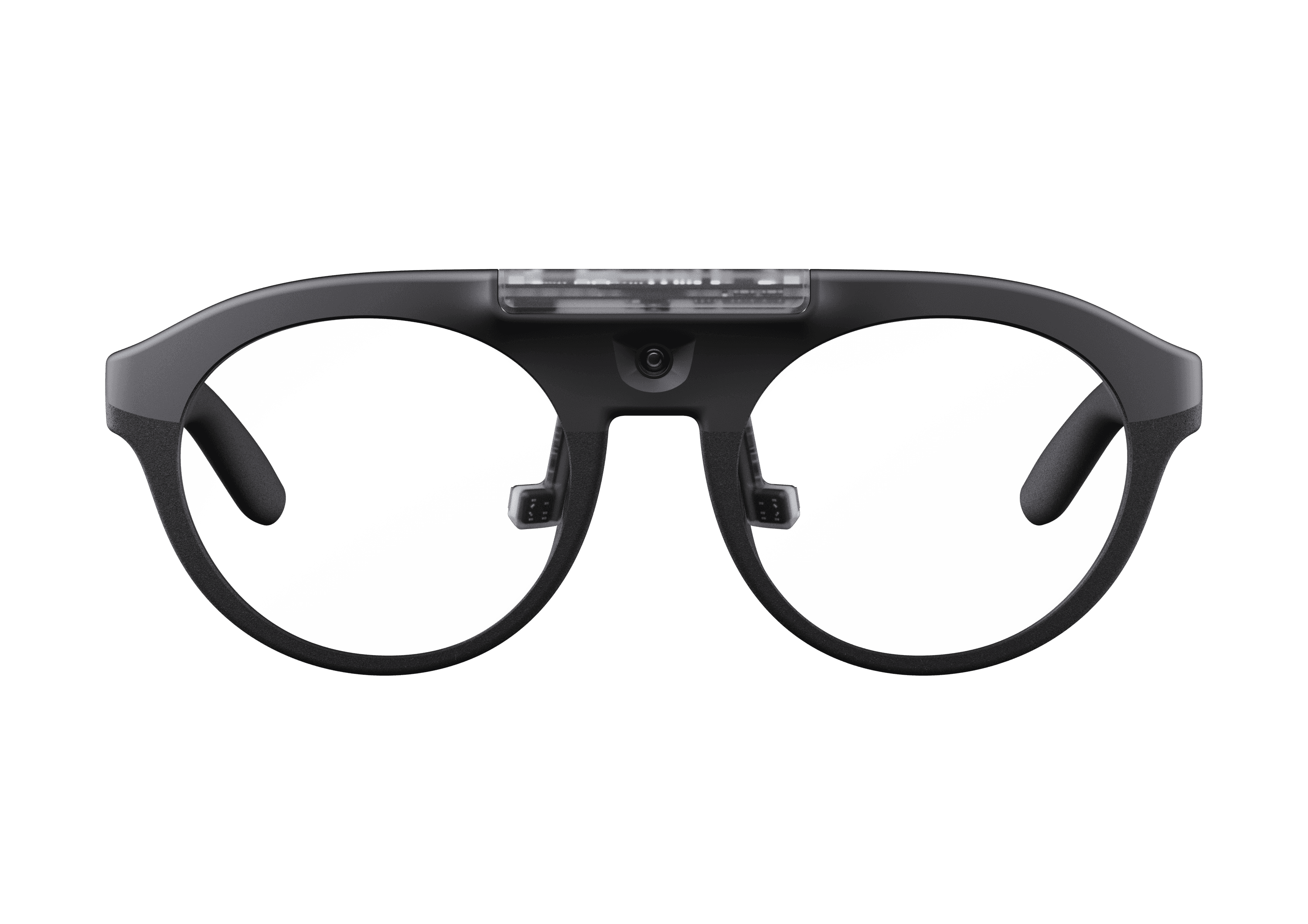

I can see clearly now
Dimensions
H54 x W143 x D164 x B21 mm
Weight
45 g (including Neon module)
Material
PA12 Nylon
Dimensions
LH46 x LW52 mm
Material
CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
I can see clearly now
Frame Properties
Dimensions
H54 x W143 x D164 x B21 mm
Weight
45 g (including Neon module)
Material
PA12 Nylon
Dimensions
LH46 x LW52 mm
Lens Properties
Material
CR-39 Anti-Scratch UV filter, Anti-Reflective, Dust and water repelling coating
Bare metal
Dimensions
H35 x W40 x D10 mm
Weight
7.3g
N/A
Bare metal
Frame Properties
Dimensions
H35 x W40 x D10 mm
Weight
7.3 g
